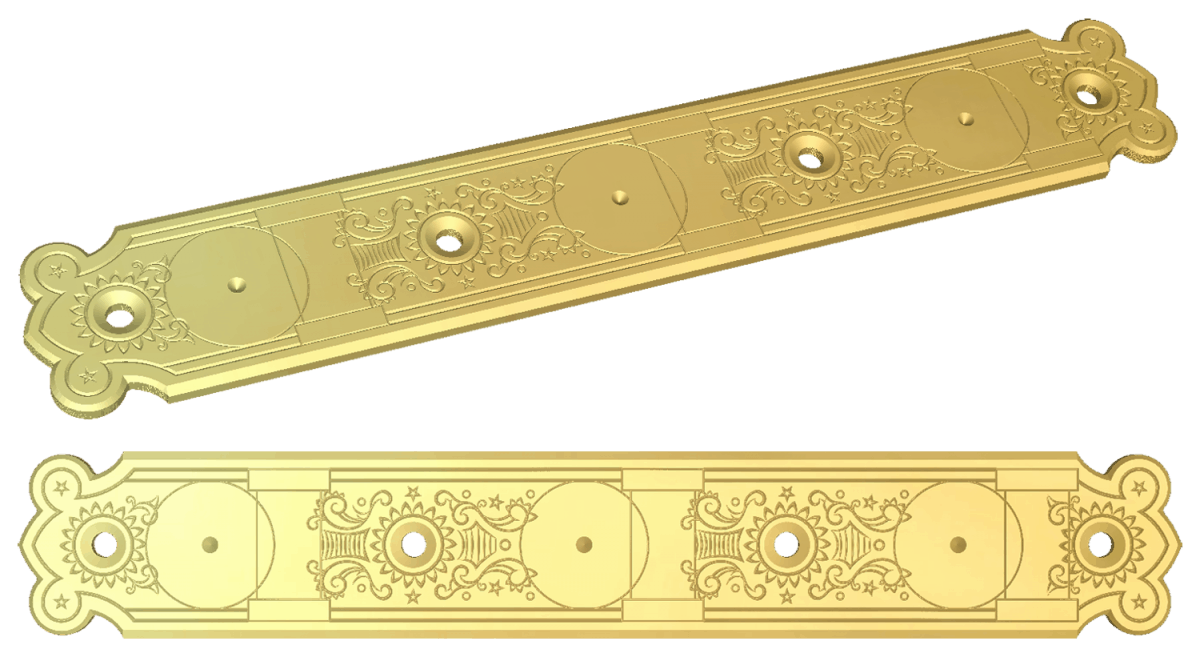

L643 Bouchet Design

L643 Bouchet

L643 Bouchet Tuner has design and dimensions for a Bouchet instrument.  It is fitted with ‘reverse gearing’.  Please see more on this set here.
We can alter the dimensions if required and use standard gearing.

All the details for this set can be altered in the options below.

More details…

$0.00

  • Style of Tuner

    Options

    To alter the specification for this set, please change the section listed below.

    Plate Options

    Custom Dimensions

    A:

    B:

    C:

    D:

    E:

    F:

    G:

    H:

    W:

    Note: Colour for the 'Button Shaft' parts can be selected in 'Extra Options' below.

    Button Options

    I will send you information for wood sizes once I receive your order.

    String Roller Options

    Lacote Rollers: 25mm Long : 12mm String hole

    Standard Size: Headstock thickness: 15.9mm String hole: 23.6mm  Headstock holes: 10mm  (select 'advanced' to change).

    Add extra String Roller details here.

    Number of String Rollers

    Do not change for 6 string guitar.
    Ukulele 4 string (Base -1  Treble -1)
    8 string guitar (Bass +1  Treble +1)

    Extra Options

    Add any other notes or questions needed here.

Description

Photographed with the following specifications:

Style of Tuner
Bouchet style
Reverse Gearing

Side-plates
Material: Brass
Dimensions: Bouchet Custom

Buttons
Oval Pattern Real Light Mother-of-pearl
Low Profile Pips

String Rollers
Cream coloured rollers for a classical guitar
Fitted with Self-aligning Bearing Bushes
Custom length
