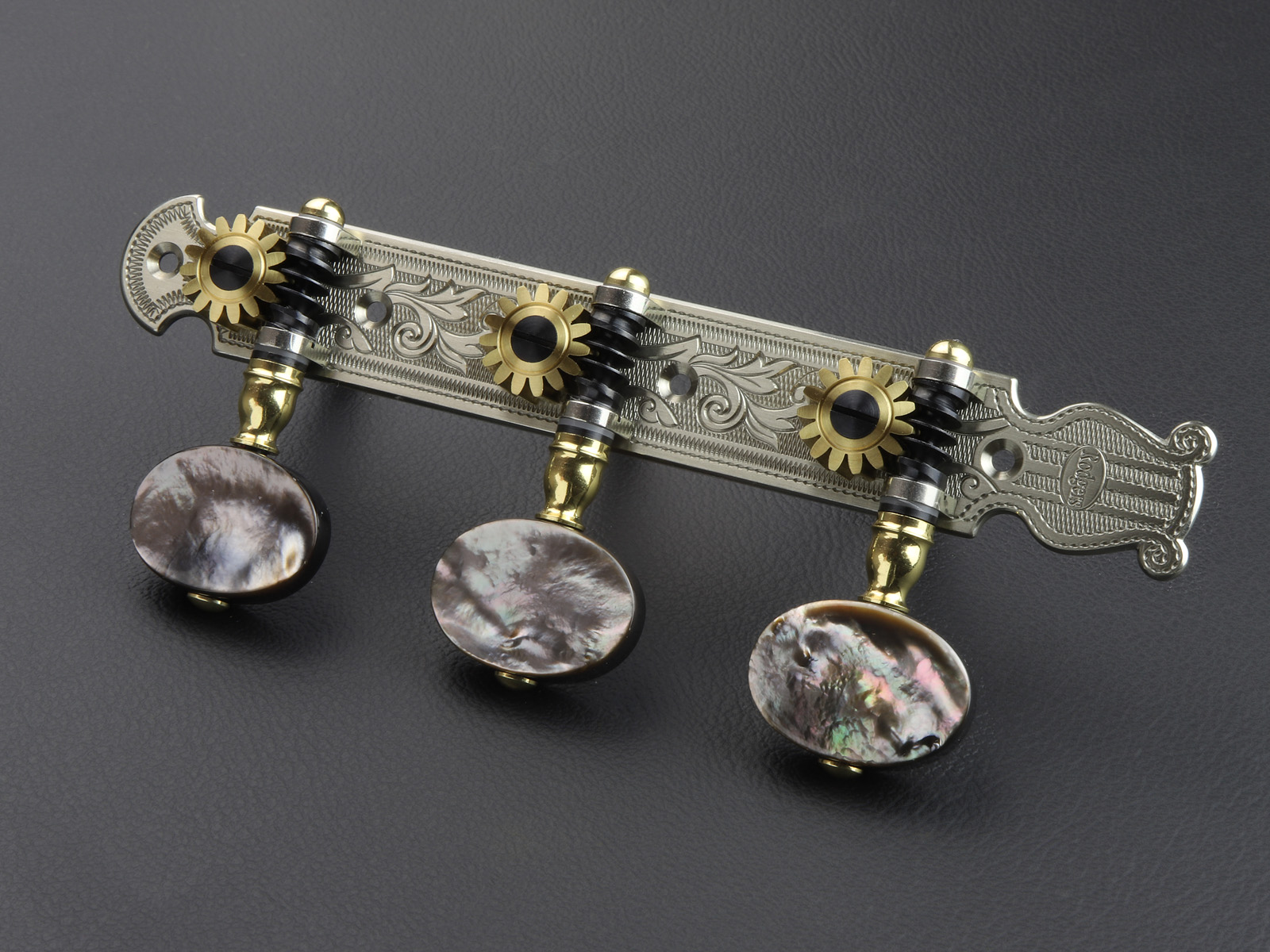

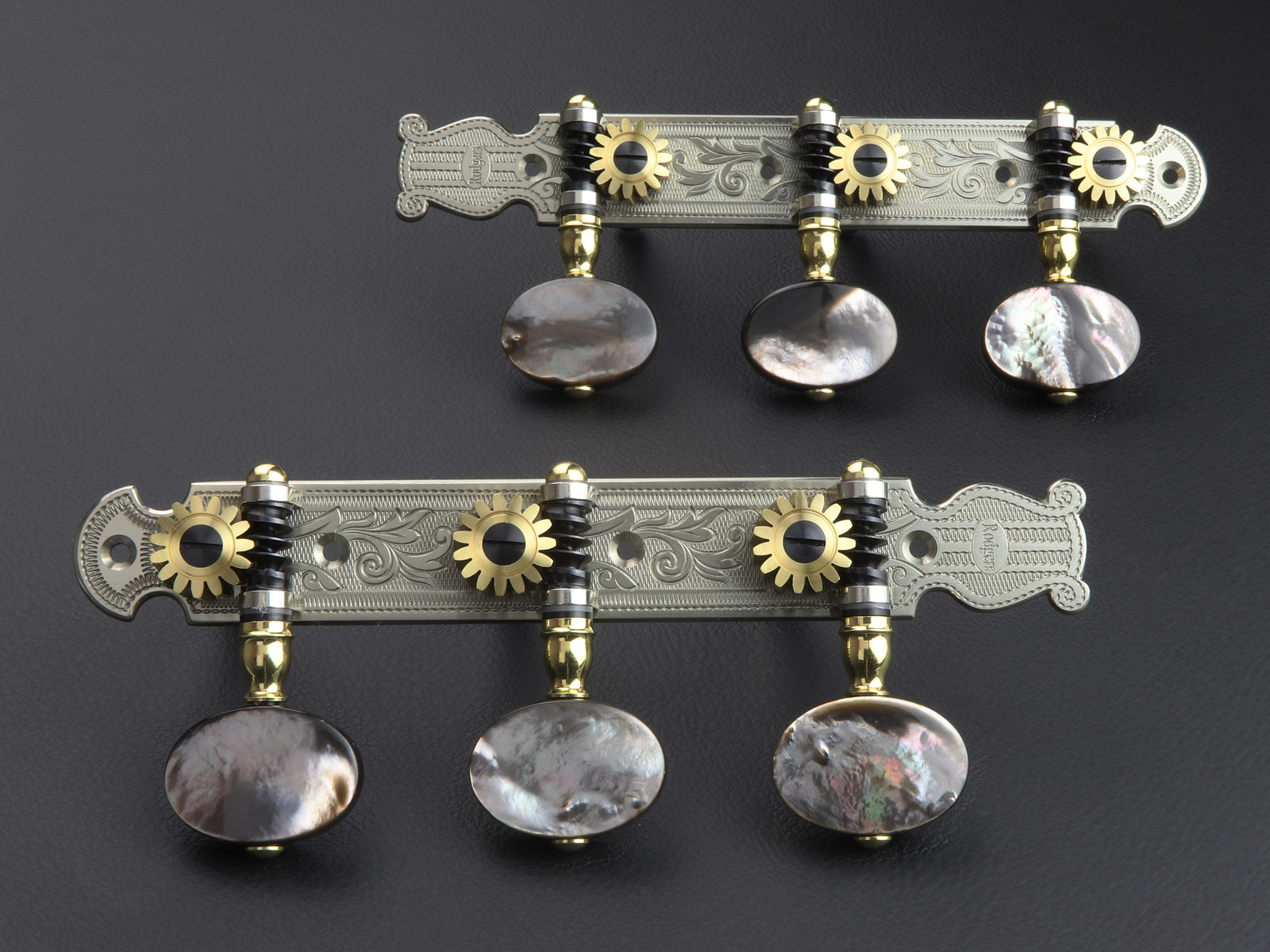

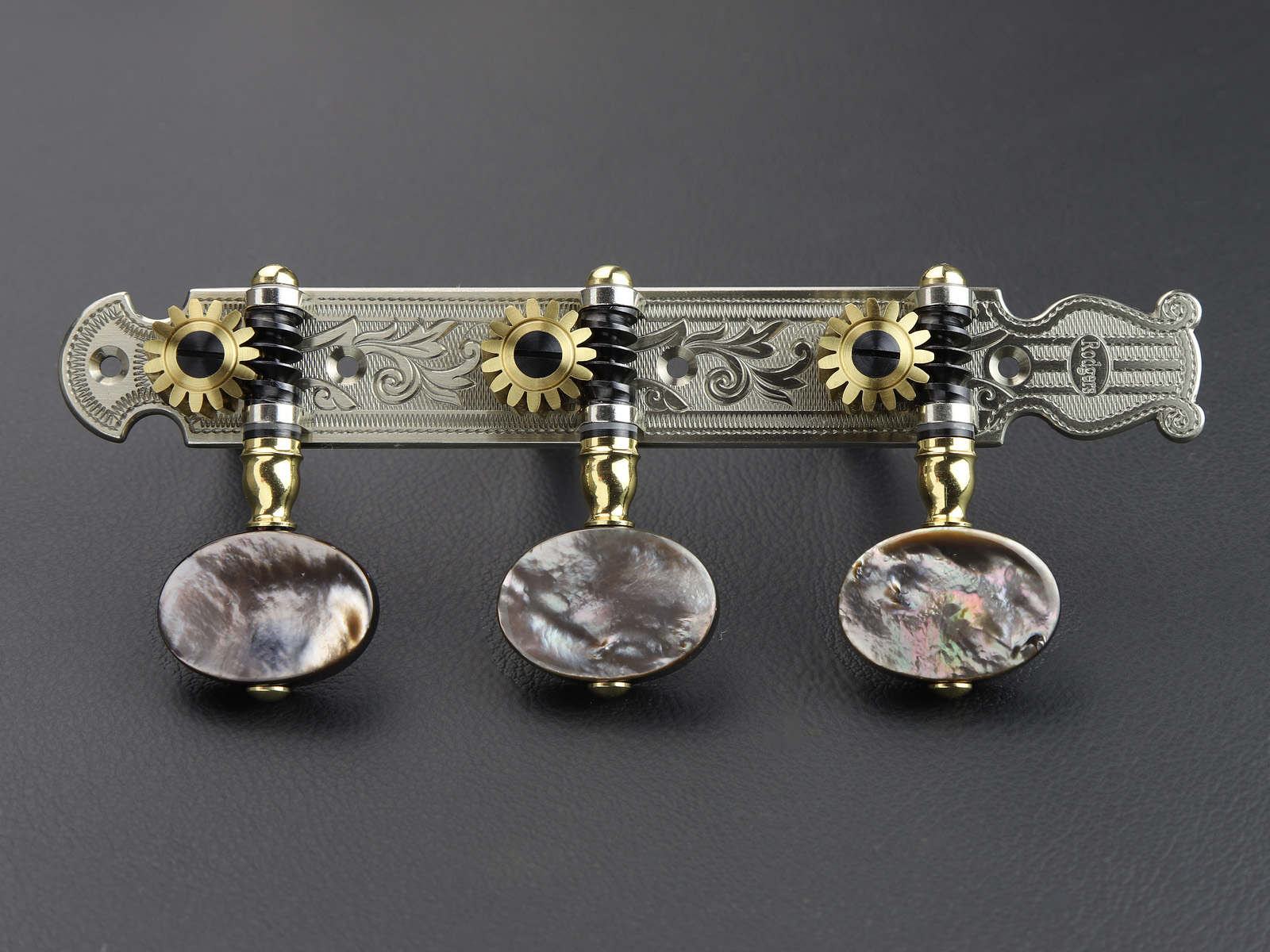

L702B Nickel Silver Oval Pattern Real Dark Mother-of-pearl
L702
L702B Nickel Silver Oval Pattern Real Dark Mother-of-pearl
L702B Nickel Silver Oval Pattern Real Dark Mother-of-pearl

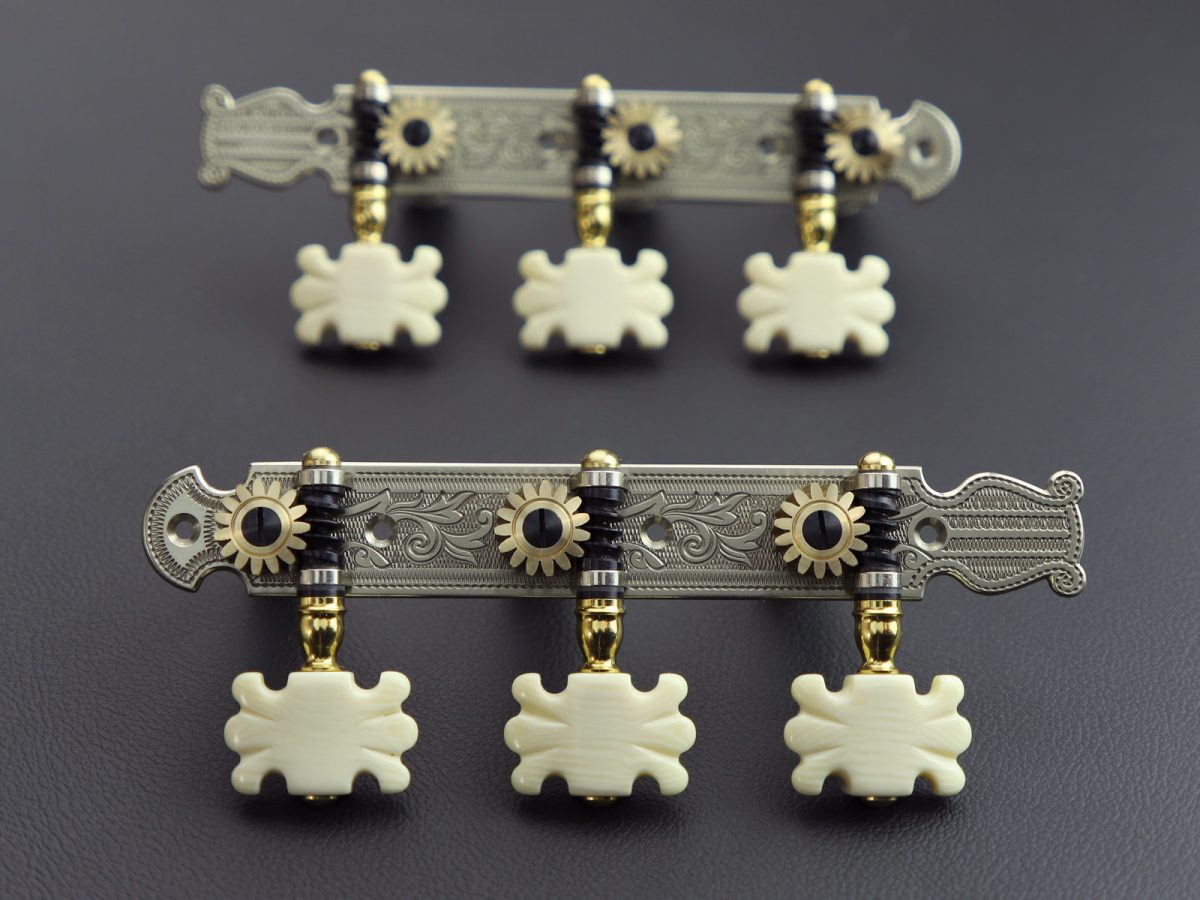

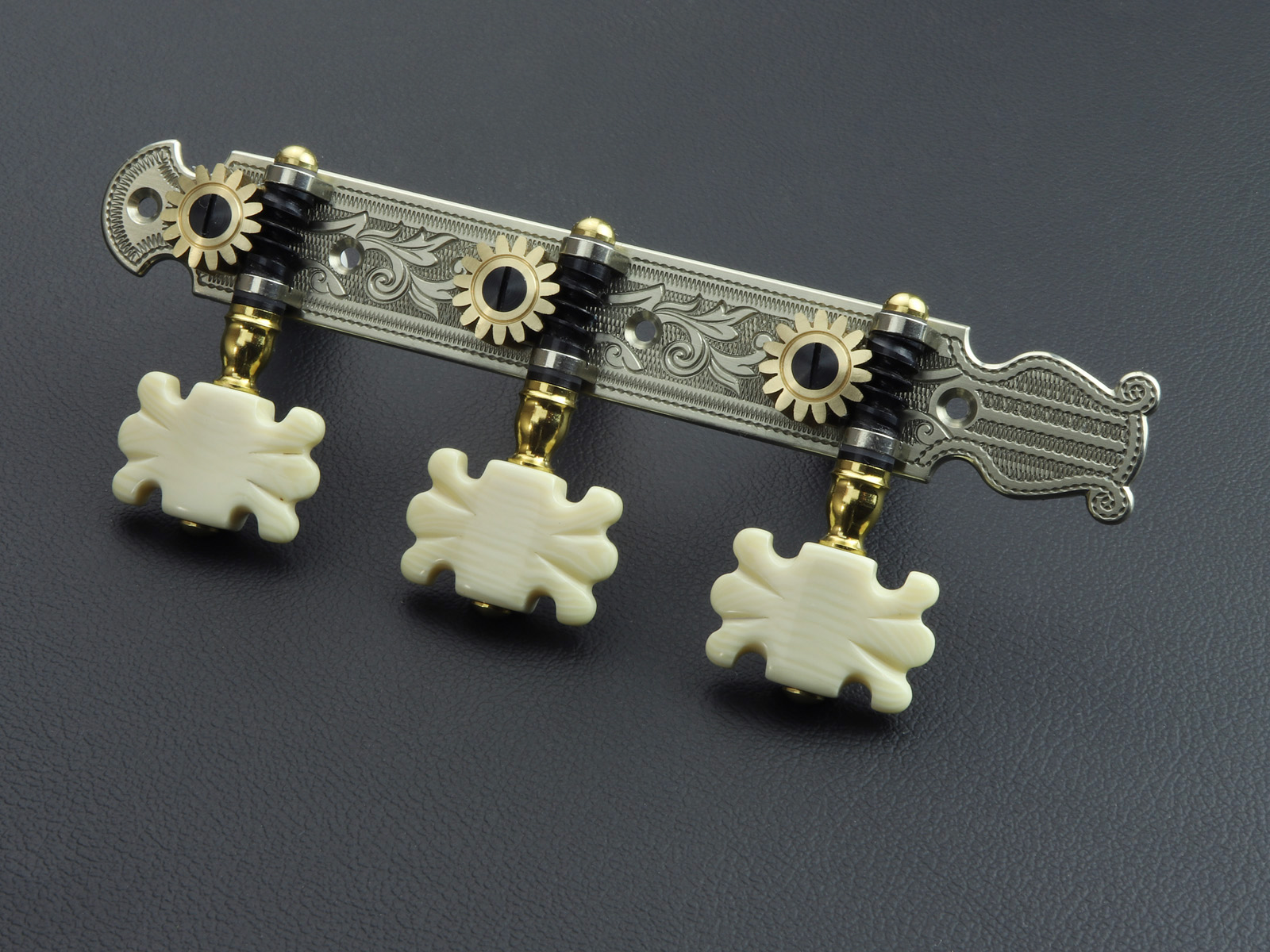

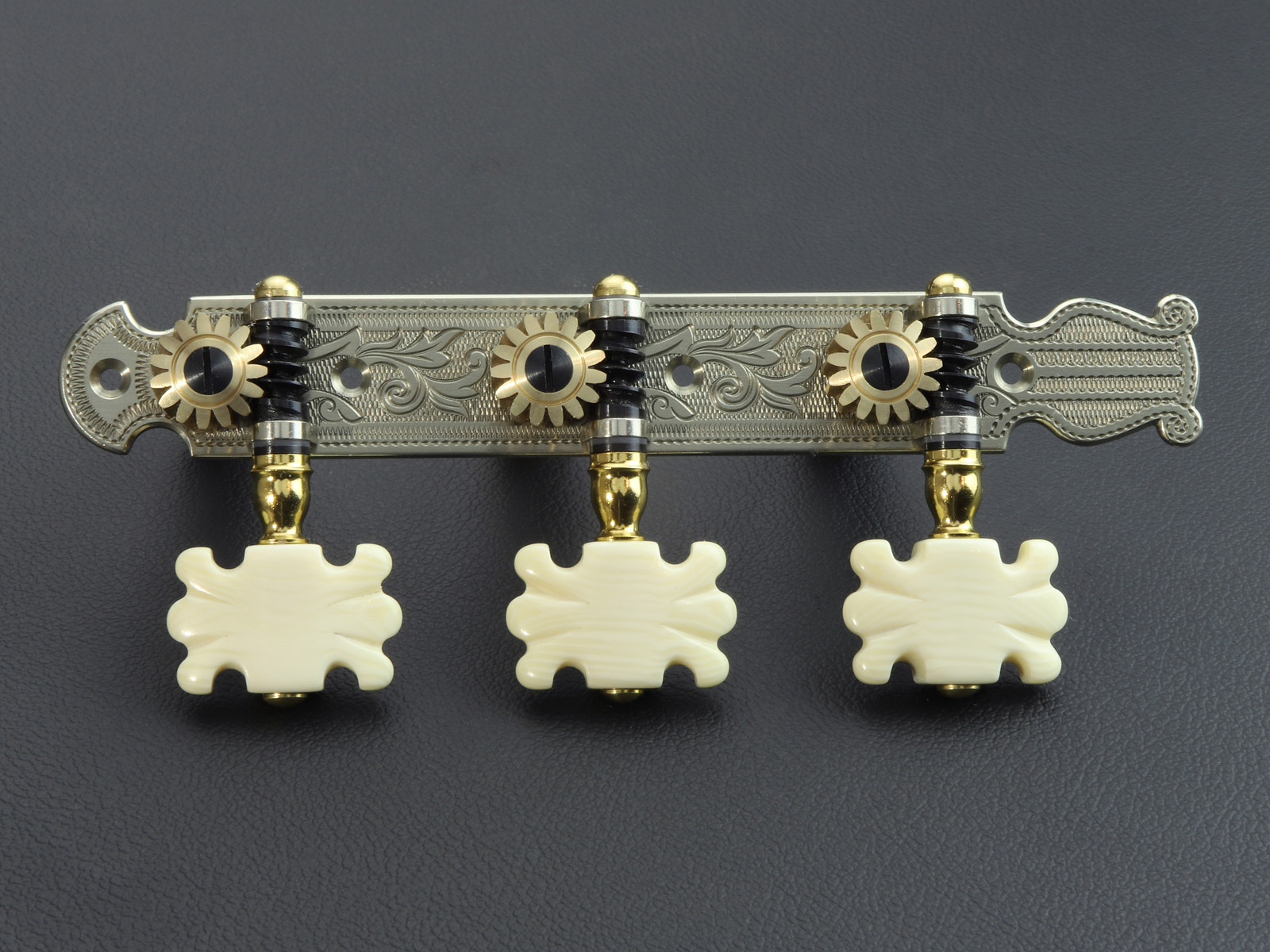

L702 Nickel Silver with ivory butterfly buttons
L702 Nickel Silver with ivory butterfly buttons
L702 Nickel Silver with ivory butterfly buttons
L702 Brass light Mop - Rodgers Tuning Machines

L702 Version-B

A design based on the Fustero style with Lyre end design.  The L702 set has dimensions slightly different to our standard tuners.

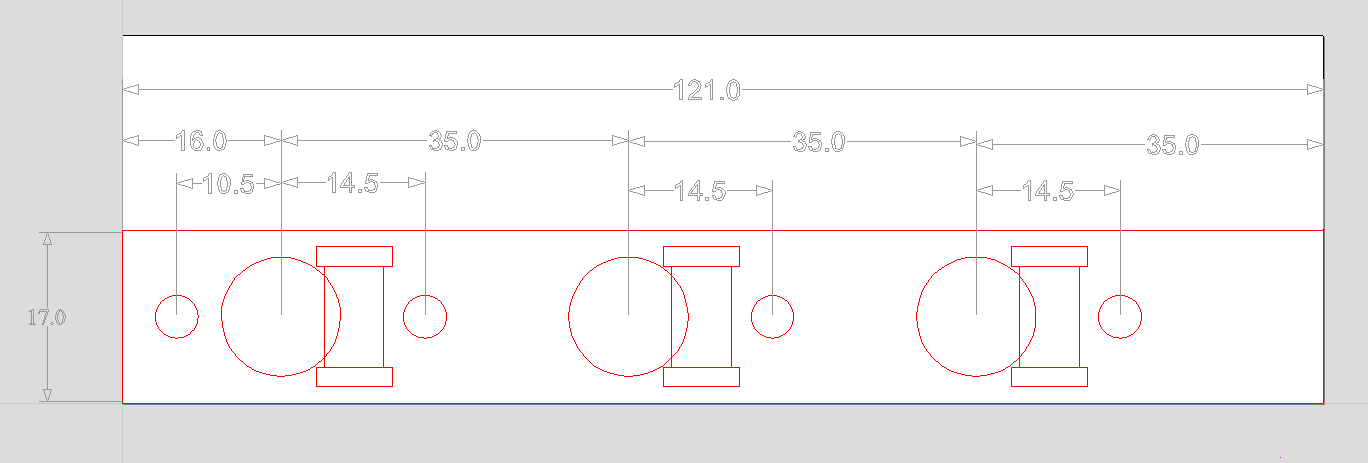

Dimension drawing pdf here

Shown fitted with Oval Pattern Real Dark Mother-of-pearl buttons and Synthetic Ivory Butterfly buttons on the later images.  Please use the ‘Button Options’ below to choose.

The top end is slightly different to the Lyre profile on the other L702 tuners shown on the website.

All the details for this set can be altered in the options below.

More details…

$0.00

  • Style of Tuner

    Options

    To alter the specification for this set, please change the section listed below.

    Plate Options

    Custom Dimensions

    A:

    B:

    C:

    D:

    E:

    F:

    G:

    H:

    W:

    Note: Colour for the 'Button Shaft' parts can be selected in 'Extra Options' below.

    Button Options

    I will send you information for wood sizes once I receive your order.

    String Roller Options

    Lacote Rollers: 25mm Long : 12mm String hole

    Standard Size: Headstock thickness: 15.9mm String hole: 23.6mm  Headstock holes: 10mm  (select 'advanced' to change).

    Add extra String Roller details here.

    Number of String Rollers

    Do not change for 6 string guitar.
    Ukulele 4 string (Base -1  Treble -1)
    8 string guitar (Bass +1  Treble +1)

    Extra Options

    Add any other notes or questions needed here.

Description

Photographed with the following specifications:

Style of Tuner
Vintage Style

Side-plates
Material: Nickel Silver
Lyre Pattern end profiles
Dimensions: 35mm spacing by 121mm overall length (see drawing)

Buttons
Oval Pattern Real Dark Mother-of-pearl
Low Profile Pips

String Rollers
Cream coloured rollers for a classical guitar
Fitted with Self-aligning Bearing Bushes
