Rodgers Tuners SS23 Brass Ebony
SS23
Rodgers Tuners SS23 Brass Ebony
Rodgers Tuners SS23 Brass Ebony

SS23 Oval Ebony

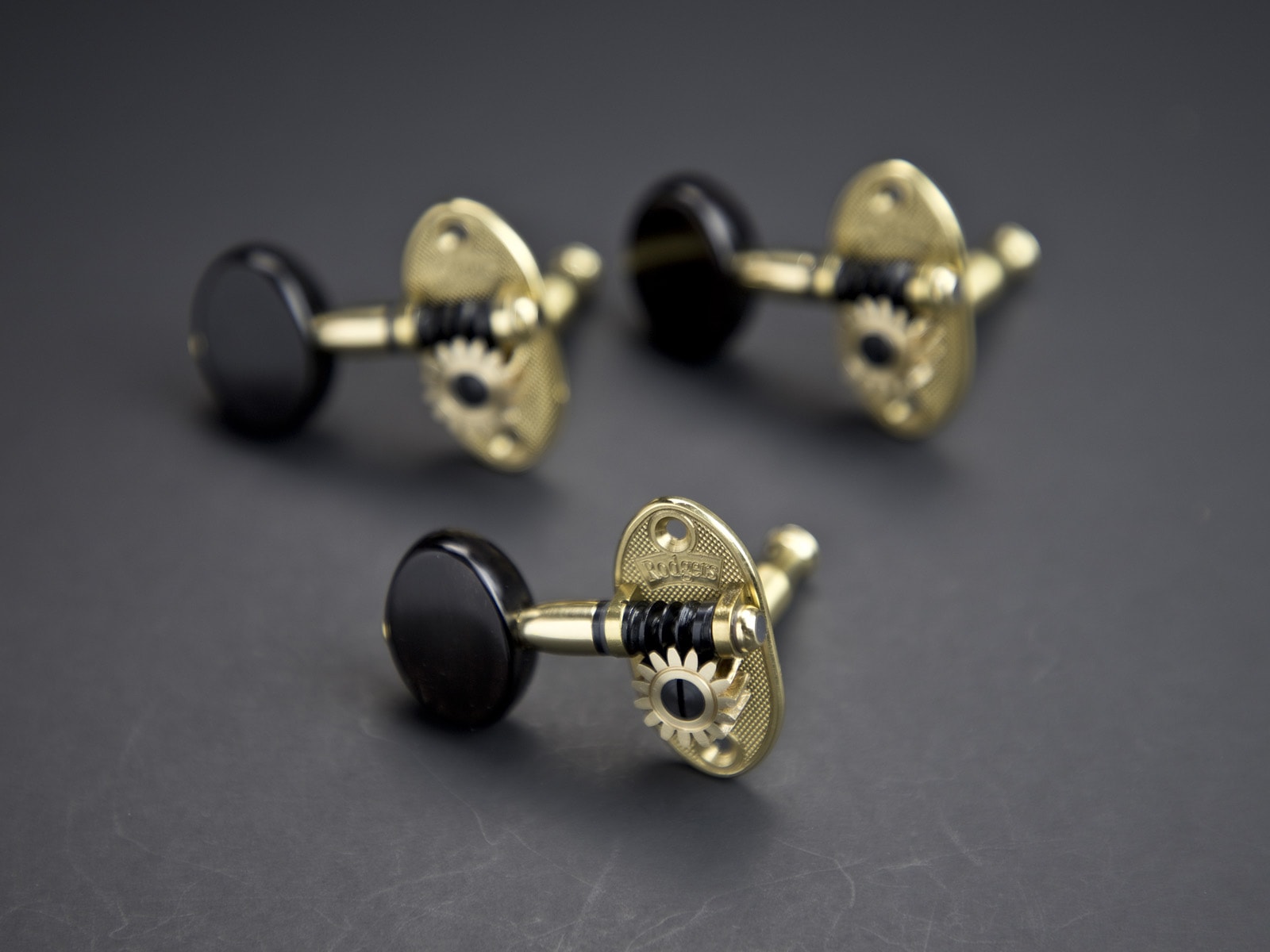

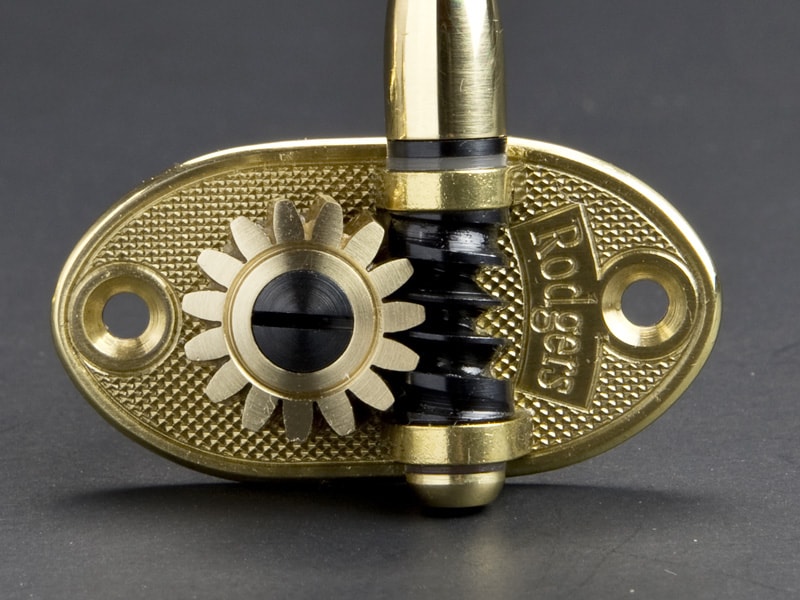

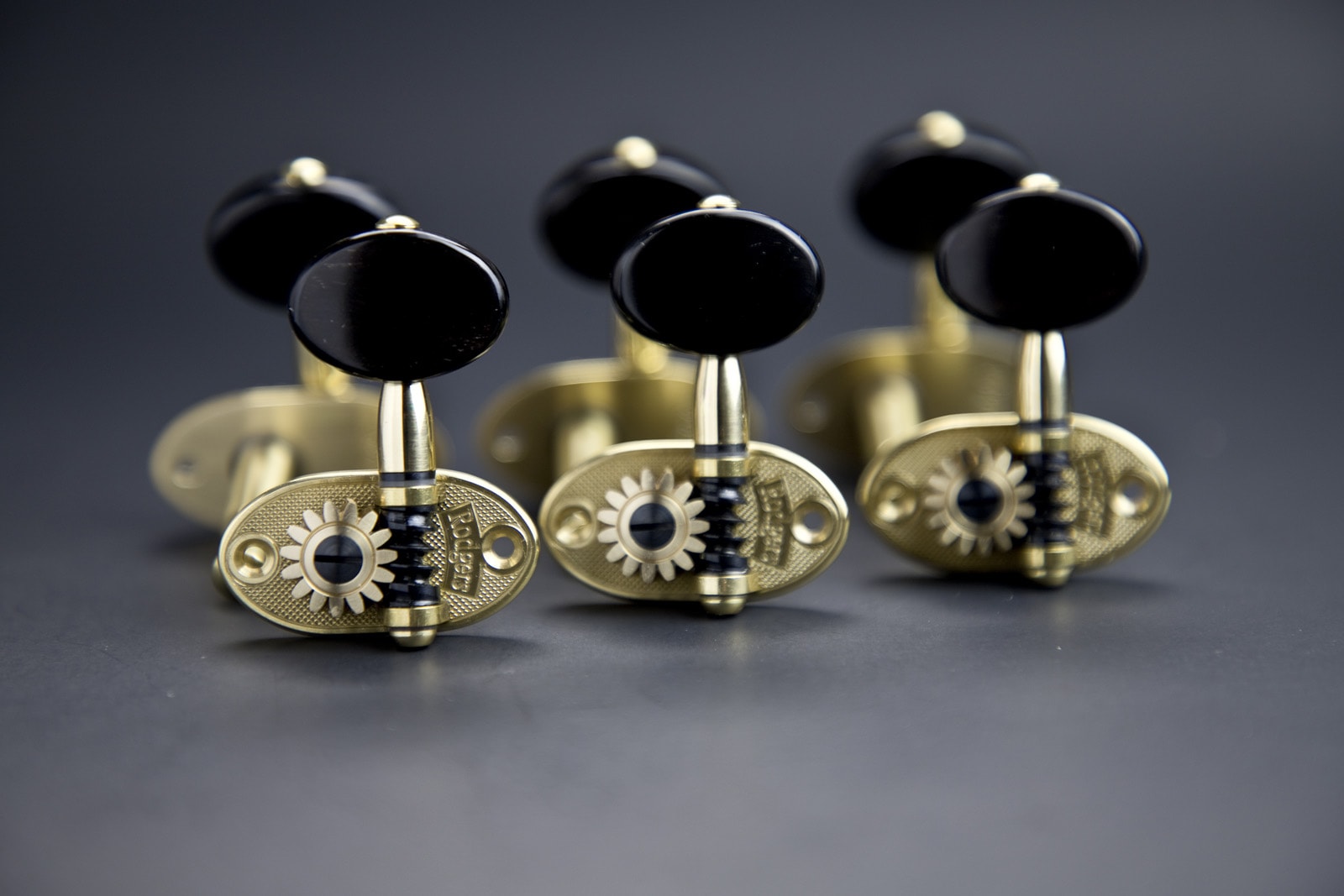

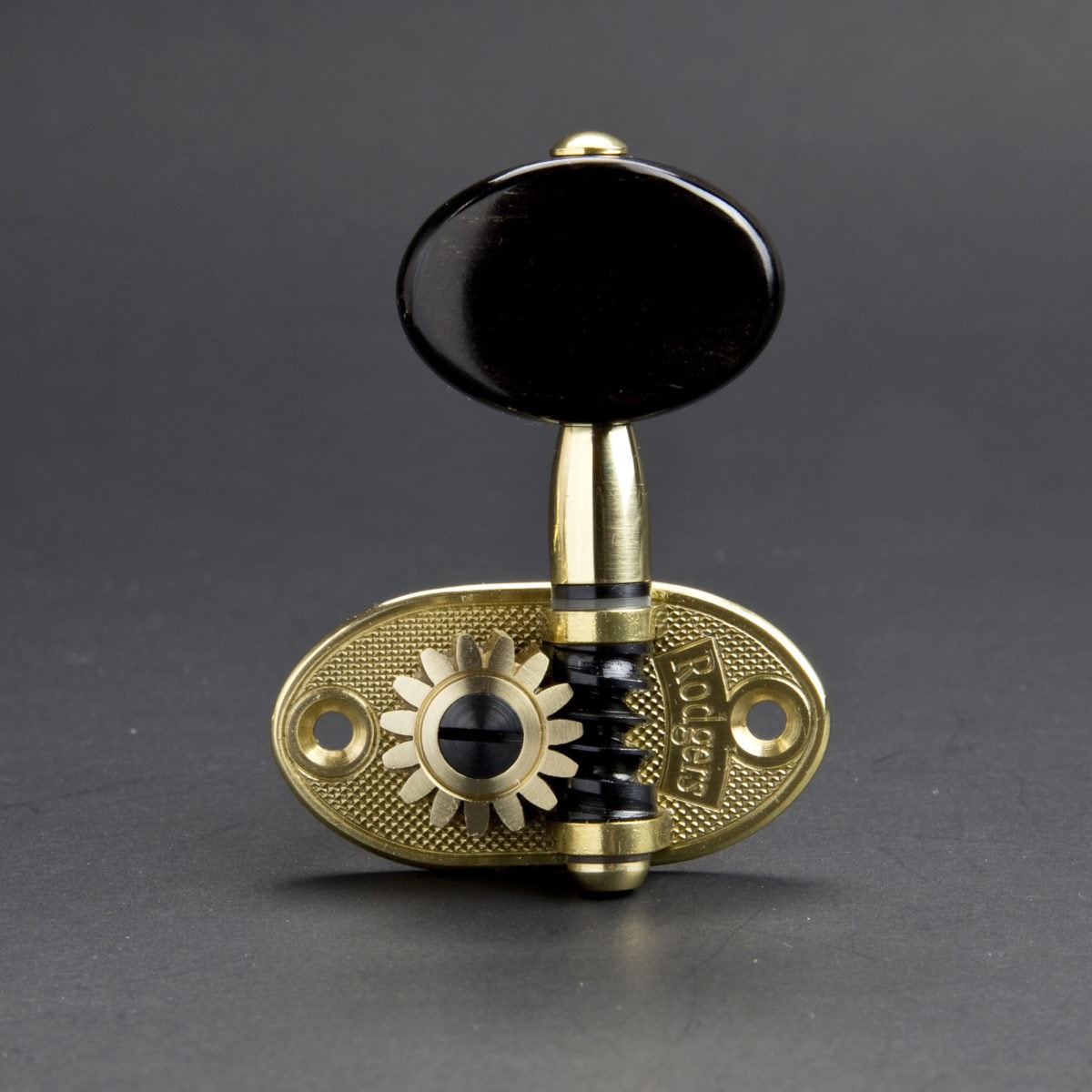

The SS23 engraved design for single gear units.  Fitted with Oval Pattern ebony buttons, straight sleeves and Low Profile Pips.  Brass rollers for a solid head steel string guitar.  This set can be made for guitars or ukuleles.

All the details for this set can be altered in the options below.

More details…

$0.00

  • Style of Tuner

    Options

    To alter the specification for this set, please change the section listed below.

    Plate Options

    Custom Dimensions

    A:

    B:

    C:

    D:

    E:

    F:

    G:

    H:

    W:

    Note: Colour for the 'Button Shaft' parts can be selected in 'Extra Options' below.

    Button Options

    I will send you information for wood sizes once I receive your order.

    String Roller Options

    Lacote Rollers: 25mm Long : 12mm String hole

    Standard Size: Headstock thickness: 15.9mm String hole: 23.6mm  Headstock holes: 10mm  (select 'advanced' to change).

    Add extra String Roller details here.

    Number of String Rollers

    Do not change for 6 string guitar.
    Ukulele 4 string (Base -1  Treble -1)
    8 string guitar (Bass +1  Treble +1)

    Extra Options

    Add any other notes or questions needed here.

Description

Photographed with the following specifications:

Style of Tuner
6 Single gear units

Side-plates
Material: Brass

Buttons
Oval Pattern Ebony
Straight sleeves
Low Profile Pips

String Rollers
Brass rollers for a solid head steel string guitar.
Including 6 top support bushes
